Importing variables

Top  Previous  Next

Choose the "Project / Communication" menu to select the appropriate communication driver, e.g. PLCH (Codesys-PLC handler).  Edit is then used to define a controller, e.g. PLC

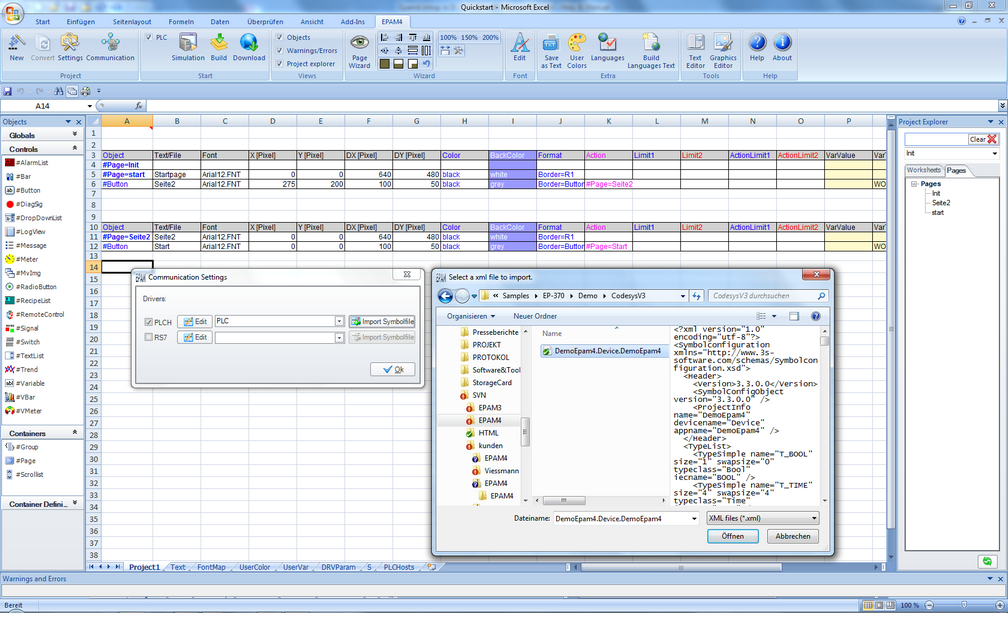

The "Import Symbol file" menu can be used to read in the Codesys symbol file (SYM/XML).



quickstart_varimport

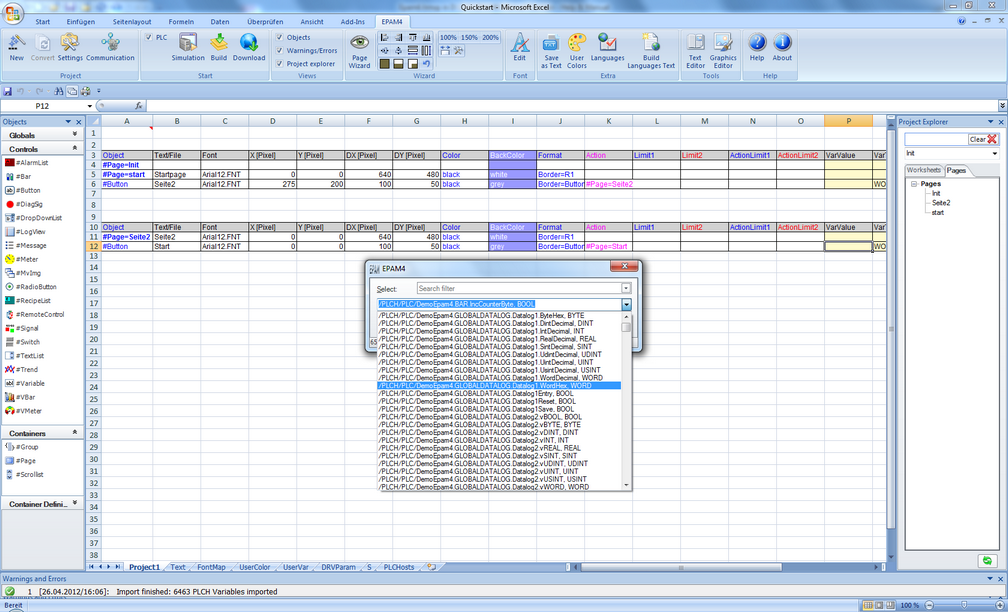

The Open function is used to import the variables into the UserVar worksheet and it is then possible to select them in the VarValue column, for example, and assign them to an object via the context menu.




quickstart_varselect
