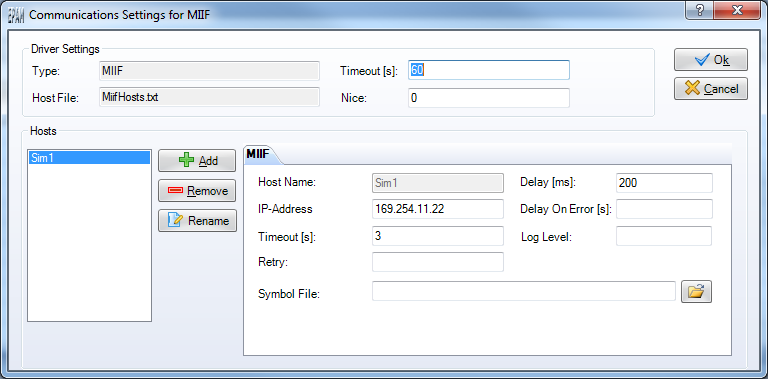

The communication channels to SIMOTION devices can be defined here.
On the SIMOTION device the TP OAMIIF must be installed!
A communication channel is referenced by its name. (normally the name of the relevant PLC)
The name of the communication channel is relevant for the variable names.
See also:
| • | Driver settings: DrvParam worksheet |
| • | Host parameters: MiifHosts worksheet |

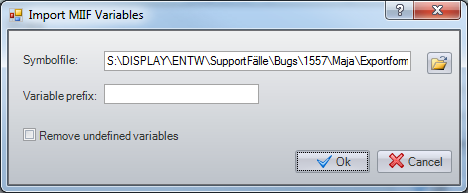

Variable Import
Variables may be imported from ST-file.

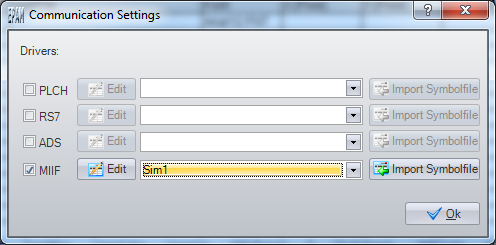

Import Symbolfile
The imported variable names are concatenated to a EPAM variable as follows:
/MIIF/<host>/<prefix>/<filename>/<variable>
Beispie:
host: |
sim1 |
Variable prefix: |
var |
filename: |
dGlobal.st |
variable: |
w1 |
ergibt: /MIIF/Sim1/var/dGlobal.w1
If the prefix was omitted, the variables are imported without prefix:
result: /MIIF/Sim1/dGlobal.w1
The runtime system inserts the default prefix unit when ever the prefix is missing!
resultt: /MIIF/Sim1/unit/dGlobal.w1
