The #Message object is used to display messages in the form of text and image information.

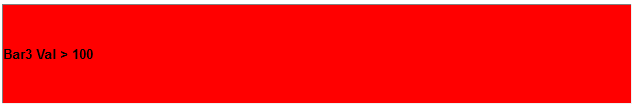

Example
Parameters
Object
M/O |
Default |
Description |
|
#Message |
M |
Output of messages in the form of text or image information |
Text/File
M/O |
Default |
Description |
|
<Message definition>.txt |
O |
Name of the Message definition. The message list is specified in a separate worksheet. |
Font
M/O |
Default |
Description |
|
<Font name> |
O |
Font for the messages |
X, Y, DX, DY
M/O |
Default |
Description |
|
Integer constants Variable of type INT |
O |
Position and dimension |
Color
M/O |
Default |
Description |
|
O |
Font color |
BackColor
M/O |
Default |
Description |
|
O |
Background color |
Format
M/O |
Default |
Description |
|
SetVar=<constant> SetVar=<variable> |
O |
The constant <constant> is assigned to the VarValue. The value of <variable> is assigned to the VarValue.
|
VarValue
M/O |
Default |
Description |
|
<variable> |
O |
Actual message number. If no message text is defined, an "empty message" is displayed, i.e. the background is deleted. |
VarType
VarState
Option
M/O |
Default |
Description |
|||
Pos=<Center¦Left¦Right> |
O |
Pos=Left |
Positioning of the text: |
||
|
|
|
Left = left-justified |
||
|
|
|
Center = centered |
||
|
|
|
Right = right-justified |
||
Transparency=<color> |
O |
|
If an image file was configured, the specified color is interpreted as transparent. |
||
PWL=<x> |
O |
|
Required password level for enabling (see #Password). |
||
VarStateOnOffInverted |
O |
|
Inverts the On / Off functionality of the VarState Variable:
VarState = 0 -> Off VarState = 1 -> On
|
Deleting messages from the PLC
For this define an empty message without text. In this case, only the rectangular area is deleted.
Difference to EPAM3
| • | Messages with format placeholder and additional variable values are currently not supported. |
